TL;DR: Key Takeaways
- What it is: 3D puff embroidery uses a thin sheet of EVA foam under satin stitches to raise your logo about 2 to 3 millimeters above the hat surface.
- Eligibility math: Your logo needs at least a 3mm minimum stroke width, a minimum letter height of about 1/4 inch, and fits within a 2 to 2.5 inch by 3 to 4 inch usable area.
- Hat compatibility: Trucker and 6-panel snapback hats work; unstructured dad hats do not.
- B2B use-case match: Pick flat for daily-wash staff hats; pick 3D for retail merch and brand-statement hats.
- The cost stack: Digitizing fee plus per-piece upcharge plus sometimes a higher minimum quantity than flat.
What custom 3D embroidered hats actually are (definition with Arklavo lens)

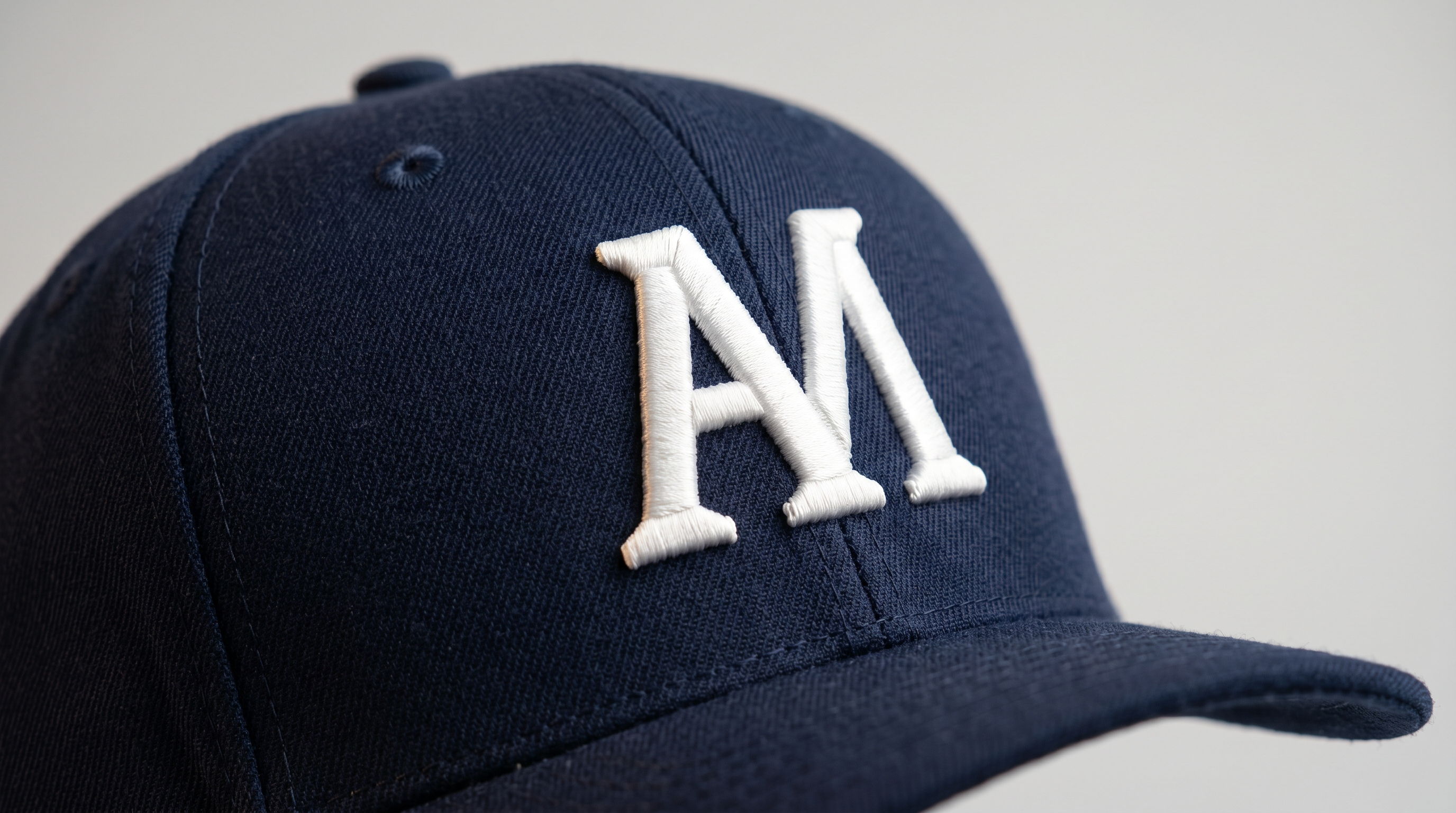

Custom 3D embroidered hats use a thin sheet of EVA foam under satin stitches to raise your logo about 2 to 3 millimeters above the cap surface. The technique works best on structured hats (trucker, snapback) where the front panel can hold the foam shape, and it works best for bold, simple designs without fine detail. Some people call it 3D puff embroidery, raised embroidery, or simply puff stitching. They all describe the same technique.
The process itself is straightforward in concept. The embroiderer cuts a piece of foam to roughly the shape of your design, places it on the cap front, then stitches over it with closed-edge satin paths that fully encase the foam. The thread tension is set slightly tighter than flat embroidery so the stitches slice cleanly into the foam rather than letting it bulge between threads.
What separates good 3D from bad 3D, in practice, is the file behind the order. A standard flat embroidery file forced onto 3D foam will produce broken needles, shredded foam, and a design that sinks instead of pops. You cannot fake the file. The file must be specifically digitized for 3D with thicker satin columns, closed end-caps, and reduced stitch density.
For B2B buyers ordering 12 to 500 hats, the practical implication is this: 3D puff is a great look on the right design and the right hat, but it carries more failure modes than flat. The right shop catches those failure modes during the proof process, not after the production run.
Is your logo eligible for custom 3D embroidered hats? Three numbers to check before ordering
Three numbers decide whether your logo will work as 3D puff embroidery: a minimum stroke width of about 3 millimeters, a minimum letter height of about 1/4 inch (6 to 7 mm), and a usable embroidery area on the cap front of roughly 2 to 2.5 inches tall by 3 to 4 inches wide. If any element of your logo falls below these thresholds, it either gets silently converted to flat embroidery during production or fails outright (foam pokes through, letters fill in).
Minimum stroke width
Any satin column narrower than ~3mm can't fully cover the foam - the foam pokes through and the raised effect collapses. Open your logo in any vector tool and measure the thinnest line.
Minimum letter height
Below ¼ inch (6-7mm), lowercase letters with internal shapes (e, a, g) fill in. Punctuation and thin accents disappear entirely. Cap your tagline at ~4-6 words.
Usable embroidery area
Cap fronts give you ~2-2.5″ tall by 3-4″ wide of flat front-panel space. Beyond that, the cap curves into the crown and your design loses registration.
Which Arklavo hats support 3D puff embroidery?
Arklavo offers 3D puff embroidery on structured hats only , primarily 6-panel snapbacks and trucker hats with foam or buckram fronts. Unstructured dad hats and low-profile caps do not get 3D puff at Arklavo because the soft front panel sags around the foam, killing the dimensional effect that makes the technique worth paying extra for.

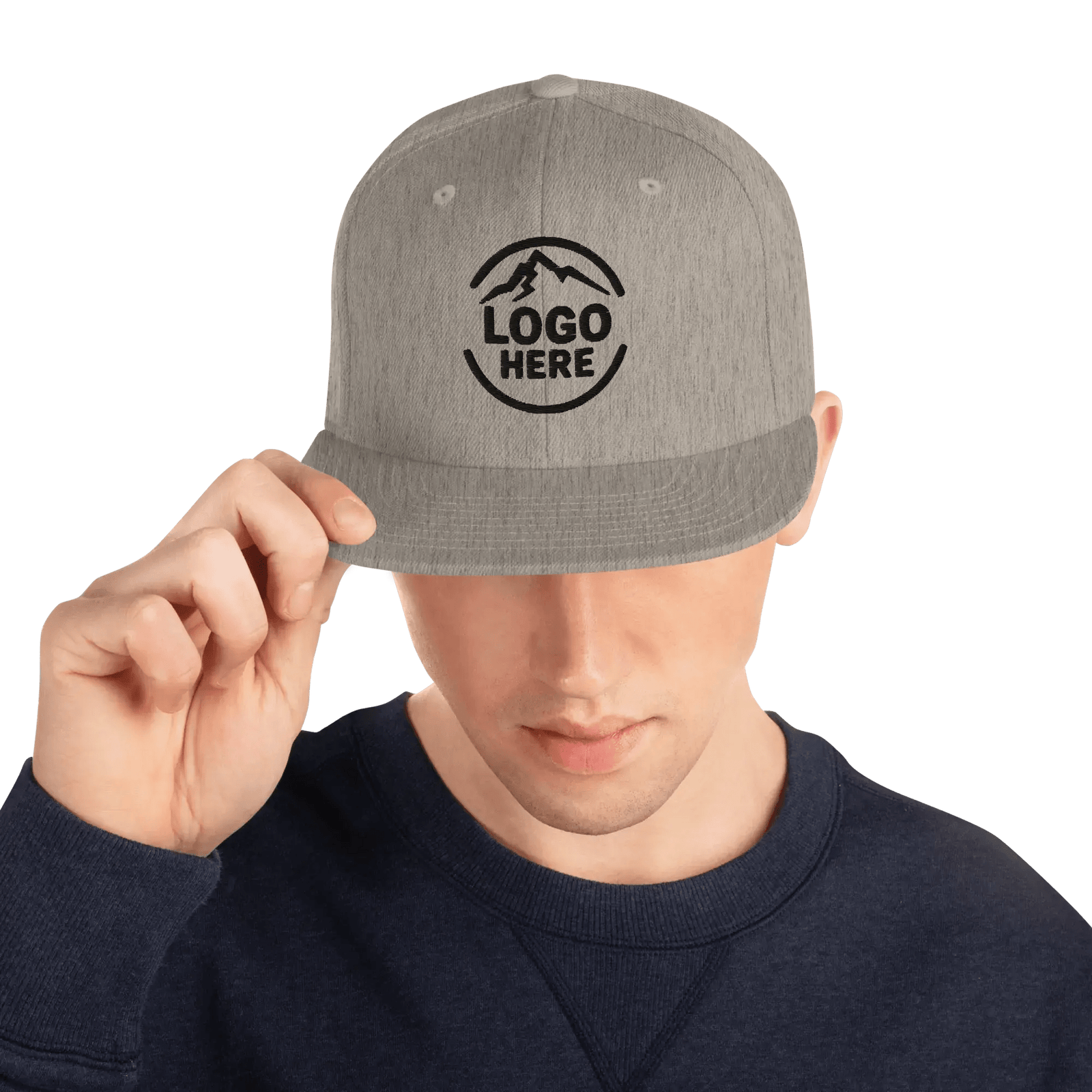

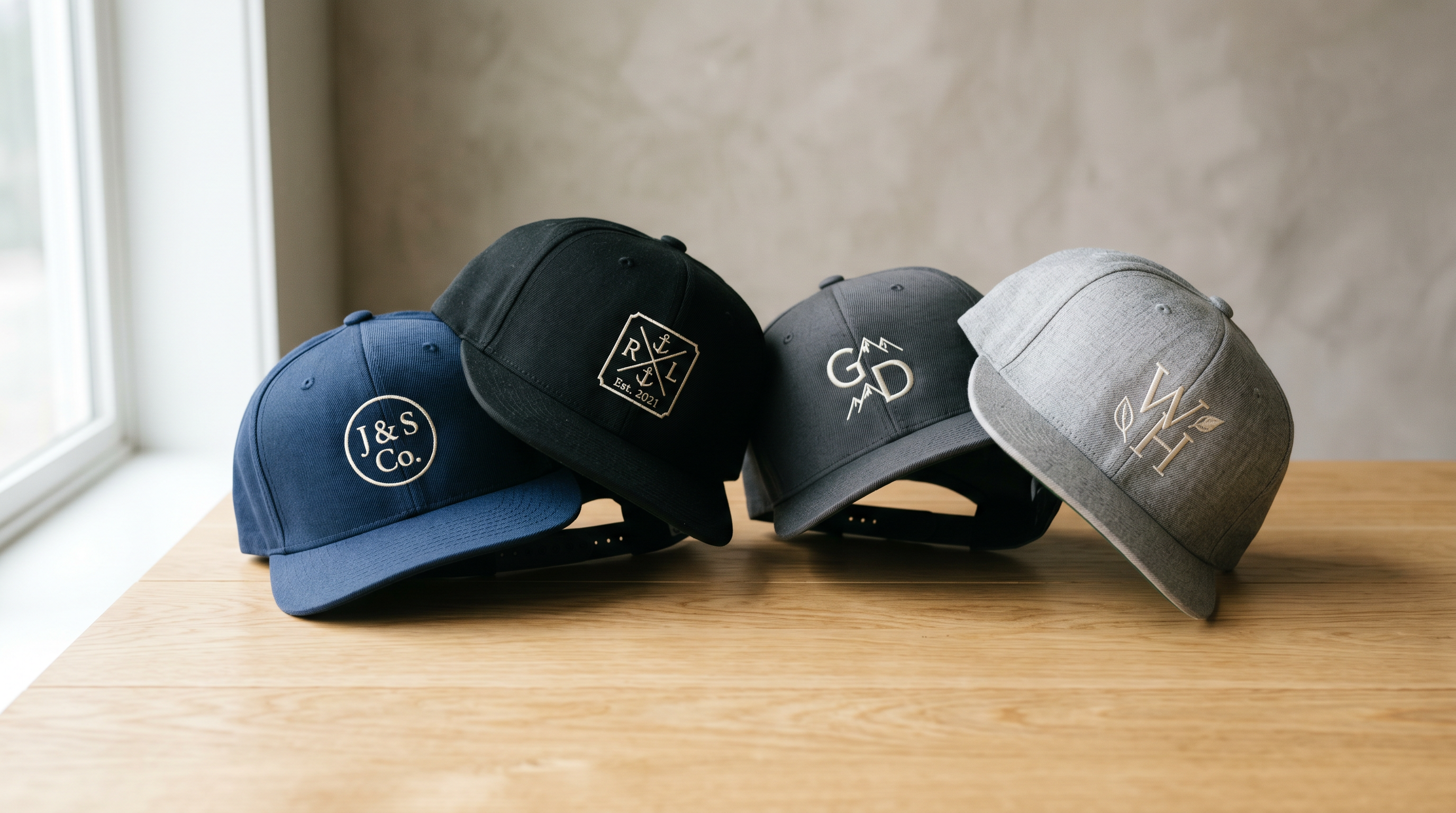

The hats most commonly ordered for 3D at Arklavo are 6-panel structured snapbacks (Yupoong-style and equivalent), classic trucker hats with foam or buckram fronts, and structured baseball caps with buckram crowns. Adidas and Champion structured snapbacks both work well. The full eligible-for-3D set lives in the Arklavo custom hats collection; if you're not sure whether a particular hat in the catalog supports 3D, the customizer tool or a quote request will confirm before you commit.
What Arklavo does not offer 3D on: dad hats with unstructured fronts, low-profile 5-panel caps with soft crowns, and any hat with a knit or jersey front panel. The technique just doesn't hold its shape on those substrates, and we'd rather steer you to flat embroidery (which looks great on those hats) than ship a 3D order that doesn't pop.
Worth noting: this is a deliberate constraint, not a capacity issue. Other vendors will accept the order and let you find out on delivery that the 3D didn't work. Arklavo would rather lose the order than ship a hat that disappoints.
The proof process: what Arklavo marks for you before production starts
For every 3D order, Arklavo sends back a proof image with each logo element clearly marked as 3D-puff or flat embroidery before production begins. This is the step most marketplaces skip , buyers approve a generic mockup, then receive hats with parts of the logo silently converted to flat. The proof-marking step exists to remove that surprise.
What the proof actually shows
For a typical B2B logo with a bold icon plus a tagline, the proof from Arklavo will show:
- Which exact elements will be 3D puff (usually the bold icon and the largest letters)
- Which elements were converted to flat embroidery (usually the tagline, fine detail, and any element below the 3mm stroke floor)
- The actual size at which the logo will be stitched (in inches and millimeters)
- Thread color callouts (matched to your brand colors or PMS specs when supplied)
- Placement on the chosen hat style
The 5-point buyer checklist for reviewing the proof
- Proportions: Did the vendor silently thicken strokes or drop details to make 3D work? Confirm the on-proof logo still reads as your brand.
- Puff vs flat annotation: Is each element clearly tagged 3D or flat? Don't assume the whole logo is puff.
- Placement vs seams: Is any part of the 3D area sitting too close to the crown seam or vent holes? Curved or seamed areas can distort the foam.
- Thread color contrast: 3D adds shadow lines that change perceived color. Verify your brand colors will still look like your brand.
- Sample sew-out (orders 24+): Arklavo offers a physical sample stitched on the actual hat style before the production run for orders of 24 hats or more. Use it.
3D vs flat embroidery for B2B: the staff-vs-retail-vs-sports decision matrix
For B2B buyers, the 3D-versus-flat question depends on how the hat will be used: pick flat for daily-wash staff hats (kitchen, lawn crew, restaurant), pick 3D for retail merch and brand-statement hats (brewery taproom, sports team retail, real estate giveaways), and use a hybrid (3D on the bold icon, flat on the tagline) for mixed-detail logos. The use-case match matters more than the price difference.
Flat embroidery: the safer choice for daily-use staff hats
If your staff will wear these hats five days a week, throw them in a hot wash, and hang them on a peg in a kitchen or warehouse, pick flat. Flat embroidery is more forgiving of hard washing, doesn't have foam that can flatten or distort over time, and supports finer detail (so multi-line text and detailed logos look clean).
Typical flat-first ICPs: restaurant front-of-house staff, kitchen staff, lawn and landscaping crews, food truck staff, healthcare staff (where Arklavo does not specifically focus, but the wash-frequency principle still applies), warehouse and inventory teams.
3D puff: the premium look for retail and brand-statement hats
If the hat is going to a customer, fan, or someone who wears it occasionally rather than for a daily shift, 3D earns its upcharge. The raised effect reads as premium and commands a higher retail price point or perceived value. Brewery taproom hats, sports team retail caps, real estate office giveaway hats, brand-launch promotional caps, and corporate event swag all sit in this bucket.
Hybrid: 3D on the icon, flat on the tagline
The most common real-world choice for B2B logos is a hybrid. Your icon or monogram (the bold element) goes 3D; your business name, tagline, or supporting text (the detail-heavy elements) goes flat. This is exactly what the proof-marking step accomplishes.
Talk to a real person
Speak to an Arklavo apparel expert
Quick chat, no pressure, no quote required. Get personalised advice on whether your logo, hat style, and order size are a fit for 3D puff embroidery.
Call (302) 775-9484 Request a Free Proof
Available Mon to Fri, 9am to 5pm ET. Average response under 20 minutes.
The real cost stack: what you actually pay for 3D versus flat
The real cost of 3D puff vs flat embroidery on hats includes three line items, not one: a separate one-time digitizing fee for the 3D-specific stitch file, a per-piece upcharge that varies with order quantity, and sometimes a higher minimum order quantity than flat embroidery.
1. The digitizing fee
A flat embroidery file and a 3D puff file are not the same file. The 3D file needs thicker satin columns, closed end-caps, reduced underlay, and adjusted pull compensation. If you've already paid for a flat digitizing file, expect a separate (usually one-time) digitizing fee to convert it for 3D.
2. The per-piece upcharge
The per-piece upcharge for 3D over flat is real and varies by vendor and quantity. As one industry-published reference: Stitch America publishes 3D pricing of about $5.00 per piece for 12 to 23 hats, $2.50 per piece for 24 to 47 hats, and $1.00 per piece for 48 or more hats. This is one vendor's published rate, not a market average. Arklavo's pricing is communicated via the customizer or a custom quote; for 3D on the hat collection, expect a per-piece premium versus flat in a similar range.
3. The minimum quantity
Some shops impose higher minimums for 3D than for flat because the setup time and the waste risk on small runs are both higher. Arklavo's standing offer remains no minimums on most product categories, with the practical caveat that very small 3D runs (1 to 5 hats) carry a higher per-piece cost because the digitizing and setup overhead is divided across fewer pieces.
The reorder math: why your second order is cheaper
The digitizing fee is paid once. As long as your second order uses the same logo and the same hat style, you skip the digitizing cost entirely on subsequent orders. Reorders also skip the proof-revision cycle (since you've already approved the proof), which compresses lead time materially.
Five failure modes for 3D puff , and how Arklavo's proof process catches them
Five failure modes show up repeatedly in 3D puff embroidery: blown-out edges (stroke too thin), filled-in letter holes (letters A, R, O, P collapse when interior gaps are too small), visible foam at edges (density too low), lopsided pop (hooping tension uneven), and design distortion on unstructured hats (soft front panel sags). Arklavo's proof-and-sample workflow exists specifically to catch these before production runs.
Blown-out edges
Symptom: Foam pokes out through the sides of the satin stitches, or the edge looks rough and unfinished.
Root cause: Satin column is too thin (below the 3mm stroke floor), stitch density is too low, or foam wasn't trimmed cleanly during finishing.
How proof catches it: Flags any element below the stroke floor before production.
Filled-in letter holes
Symptom: Interior holes in letters like A, R, O, P, B, D fill in - the letter looks like a solid blob.
Root cause: Negative space inside the letter is too small to render in foam (typically below 2-3mm of interior gap).
How proof catches it: Previews the actual size of the letter on the actual hat.
Visible foam at edges
Symptom: Small slivers of colored foam show at the edges of letters or design elements.
Root cause: Stitch density is too low, thread color differs from foam color, or foam wasn't shrunk down with a heat gun during finishing.
How proof catches it: Caught at the sew-out sample step (not the proof) - one reason we recommend the physical sample on orders of 24+.
Lopsided pop
Symptom: Left and right sides of the same word are different heights, or the design tilts on the cap.
Root cause: Hat wasn't hooped tightly enough on the cap driver; fabric shifted during stitching. 3D puff amplifies even small hooping errors.
How proof catches it: Caught by the sew-out sample - 1mm of band crookedness can look like 5mm in the final result.
Design distortion on unstructured hats
Symptom: 3D effect is weak, the design looks deflated, or the soft front of the hat pulls the design out of shape.
Root cause: Unstructured hat doesn't support foam well.
How proof catches it: Prevented entirely - Arklavo refuses 3D orders on unstructured dad hats and steers buyers to flat embroidery on those styles.
How to care for your custom 3D embroidered hats so they keep their pop
Custom 3D embroidered hats hold their pop best when hand-washed with mild soap and cold water, then air-dried , machine washing can distort the foam underlay over time. Heat from a dryer, iron, or hot car dashboard can permanently flatten the puff. If staff or end customers will inevitably machine-wash the hats, flat embroidery is the more durable choice.
The practical care guide for B2B buyers handing hats out to staff or customers:
- Print the care guide on a swing tag or insert card so end users see it
- Recommend spot cleaning between full washes (most hats need it less often than apparel)
- Avoid dry cleaning (the solvents and heat both damage foam)
- Reshape the crown after any wash so the foam holds its memory
- Store in a cool place; hot environments (car dashboards, attics) can soften the foam
A note from Conor, founder of Arklavo
Arklavo's 3D embroidery process is built around removing the surprise. Every order gets element-by-element proof marking, a physical sew-out sample is offered on orders of 24 or more hats, and the customizer tool lets B2B buyers preview the result before committing.
My standing recommendation for B2B clients: use 3D puff for retail merch and brand-statement hats (brewery taproom, sports team retail, real estate giveaways); use flat embroidery for daily-use staff hats (kitchen, lawn crew, restaurant front-of-house) that get washed hard. The use-case match matters more than the price difference.
Most of the "3D puff went wrong" stories I hear from buyers trace back to one of two things: they ordered from a marketplace that didn't run a proof-marking step, or they put 3D on an unstructured hat that couldn't hold the foam shape. Both are avoidable with a vendor who'll tell you what won't work before the production run begins.
Arklavo serves 1,000+ businesses across restaurant, brewery, sports, real estate, corporate, and event verticals. If you're new to 3D puff and want a quick read on whether your logo will work, the fastest path is the customizer tool or a quote request , both come back with proof in front of you before you commit.
Conor, Founder, Arklavo. Reach me at info@arklavo.com or (302) 343-4204.
Frequently asked questions about custom 3D embroidered hats
What's the difference between 3D embroidery and 3D puff embroidery?
They're the same technique. "3D embroidery" and "3D puff embroidery" and "raised embroidery" all describe foam under satin stitches that raises the design above the hat surface. Some shops use "3D" for the marketing name and "puff" for the technical name; both refer to the same process.
How much more does 3D cost than flat embroidery?
Expect three line items: a one-time digitizing fee for the 3D file, a per-piece upcharge over flat (one published reference is $5.00 per piece at 12 to 23 hats, dropping to $1.00 per piece at 48 or more), and sometimes a higher minimum quantity. The reorder math improves: digitizing is paid once.
Can I do 3D embroidery on any hat style?
No. 3D puff works on structured hats (6-panel snapbacks, trucker caps, structured baseball caps with buckram crowns). It doesn't work well on unstructured dad hats, low-profile soft-crown hats, or jersey-front caps because the soft fabric sags around the foam.
What's the minimum order quantity for 3D embroidered hats at Arklavo?
Arklavo's standing offer is no minimums on most categories. For 3D specifically, very small runs (1 to 5 hats) carry a higher per-piece cost because the setup and digitizing overhead is divided across fewer pieces. Most B2B buyers find the price-per-hat sweet spot starts at about 12 hats and improves substantially at 48+.
How long does it take to receive my 3D embroidered hats?
3D adds a digitizing step (creating the 3D-specific stitch file) and ideally a sample sew-out step on orders of 24+ hats. Expect production lead time to be 1 to 2 weeks longer than flat embroidery on the same order size, plus shipping. Reorders that use the same logo and hat style skip the digitizing and proof-revision cycles, so they ship faster.
Do I need to send a special file format for 3D embroidery?
Vector formats (AI, EPS, SVG) are easiest to work with because they scale cleanly. PNG and JPG can work if they're high resolution. Your digitizer will convert your file into a 3D-specific stitch file regardless of the format you start with. The key is sending the cleanest source file you have.
What happens if my logo has fine detail that doesn't work in 3D?
At Arklavo, the proof image will show which elements were converted to flat embroidery and which stayed as 3D puff before production starts. You can then decide whether to (a) approve the hybrid as is, (b) simplify the logo to make more of it 3D-eligible, or (c) switch the whole order to flat. The choice stays with you.
Can I machine-wash a 3D embroidered hat?
You can, but the foam underlay will degrade faster than with hand washing. The official guidance is hand-wash in cold water with mild soap, then air dry. If you know the hats will be machine-washed often (staff hats), pick flat embroidery instead.
How big can my logo be on the hat front?
The usable embroidery area on a typical cap front is about 2 to 2.5 inches tall by 3 to 4 inches wide. Larger structured snapbacks give you a bit more room; low-profile hats give you less. Anything that pushes into the crown curvature will lose registration.
How do I get started with a 3D embroidered hat order at Arklavo?
Two paths: (a) use the customizer tool on any eligible hat product page to preview your design before committing, or (b) request a custom quote with your logo file and the hat style you want. Either path returns a proof with element-level 3D/flat marking before production begins. First orders get 15% off with code FIRST15.
Ready to start your order?
Get a free proof of your custom 3D embroidered hats
Send us your logo and pick your hat style. We'll send back an element-marked proof showing which parts will be 3D puff and which will be flat, with real pricing for your quantity. No minimums. Ships in about 2 days for blanks. First orders get 15 percent off with code FIRST15.
