Puff Embroidery: The Complete Guide to 3D Logos

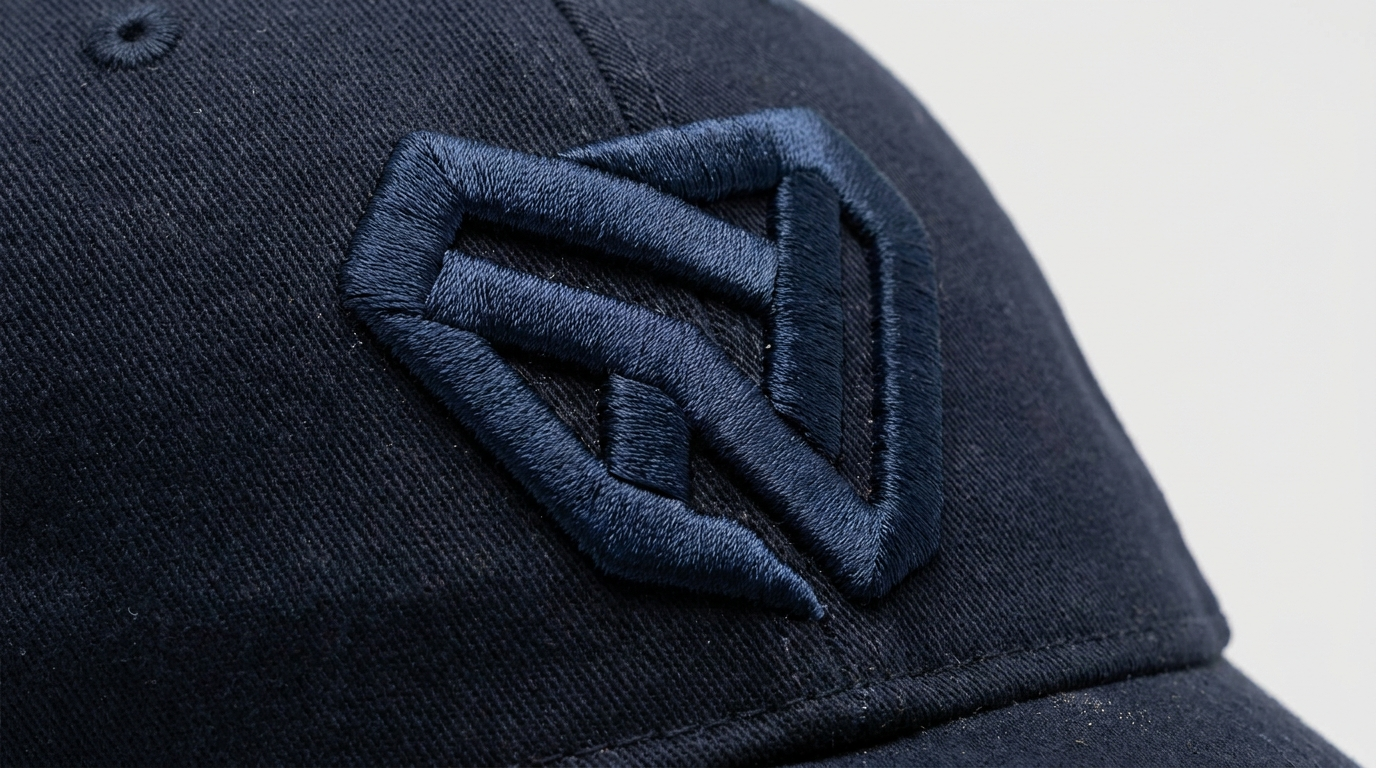

Puff embroidery is a decoration technique that stitches dense satin thread over a sheet of embroidery foam, raising your logo about an eighth of an inch off the fabric.⁴ The thread wraps the foam on every side, so the finished design reads as solid, dimensional lettering instead of a flat stitch. You've seen it on nearly every fitted baseball cap with raised block letters across the front.

This guide covers how the process works, which garments carry it best, the design rules that decide whether your logo qualifies, what it costs versus flat stitching, and how to get a raised logo on your team's caps without a minimum order.

What puff embroidery is and where you've seen it

The technique, also called 3D puff or foam embroidery, places a piece of firm foam on the garment and covers it with tightly packed satin stitches, sealing the foam inside the thread. The foam acts as a riser under the stitching. Once the design is sewn, the excess foam tears away around the edges, leaving only the raised, thread-wrapped shape behind.

The classic example is the front of a baseball cap. Sports teams, streetwear brands, breweries, and trade businesses all use raised lettering on caps because it photographs well, feels premium in the hand, and survives years of wear. The technique itself isn't new. Industrial embroidery shops have run foam under satin columns for decades, and the supply chain around it is mature. Madeira, one of the largest embroidery thread and backing suppliers in the world, sells purpose-made 3mm E-Zee 3D foam in a range of colors specifically for caps, jackets, bags, and other stable fabrics.³

What makes the result different from regular stitching is density. Flat embroidery leaves a slight texture you can feel. A raised logo is a physical object on the garment, tall enough to cast a shadow. That dimensionality is the whole appeal, and it's why so many businesses reserve it for the logo mark itself while keeping taglines and small text flat.

How a 3D puff logo is made, step by step

The process runs in a fixed order: the machine stitches any flat elements first, a foam sheet goes down over the design area, satin columns sew through the foam, perforation lines cut it, and the operator tears the excess away. Each step exists for a reason, and skipping any of them shows in the final product.

1. Digitizing. An embroidery digitizer converts your logo into a stitch file built specifically for foam. This isn't the same file used for flat stitching. Foam designs run much tighter satin spacing, around 0.18mm versus roughly double that for a standard satin, and they skip the usual underlay stitching that would crush the foam.¹
2. Flat elements stitch first. Any fine detail, small text, or outline in the design sews directly to the garment before foam enters the picture.
3. Foam placement. The operator lays a sheet of dense embroidery foam, usually 3mm thick, over the area where the raised elements will sit. Light tack-down stitches, a single run at about a 4mm stitch length, pin it in place without flattening it.²
4. Satin stitching through the foam. The machine sews the dense satin columns straight through the foam and the garment. Sharp needles, typically a 75/11, punch clean holes that perforate the foam along every column edge.¹
5. Capping stitches seal the ends. Short stitches at the start and end of each column close the foam inside the thread so no raw edge shows where a letter stroke stops.²
6. Tear-away and cleanup. The needle perforations let the operator pull the excess foam off in one motion. Stubborn flecks come out with tweezers or a quick pass from a heat gun on low, which shrinks leftover foam back under the stitches.²
7. Inspection. A good shop matches the foam color to the thread color before any of this starts, so any microscopic remnant disappears into the design instead of peeking through white.²

Machines also run slower with foam on the table. Wilcom's digitizing team reports 3D work runs best around 650 to 750 stitches per minute, well below normal flat-stitch speeds.¹ That slowdown is part of why raised logos carry an upcharge, which we'll get to below.

Puff vs flat embroidery: the practical differences

Flat embroidery handles detail, small text, and gradients better, while raised stitching trades that flexibility for bold dimensionality, so most strong cap designs combine the two. Neither one is the upgrade over the other. They're different tools, and knowing which elements of your logo belong to which technique is most of the design work.

The hybrid approach is the one we recommend most. Put the main mark or the biggest letters in foam and stitch the supporting text flat. A brewery logo with a bold wordmark and a small "EST. 2019" underneath is a perfect split: raised wordmark, flat date. Whitefish Printing describes the same combination approach for designs with fine detail.⁴ If you're still weighing decorated thread against print for your whole program, our guide on how much embroidery costs compares the options across garment types.

Best garments and placements: why structured hats win

Structured caps are the best home for a raised logo because the stiff buckram-backed front panel holds the dense stitching flat, while soft or stretchy fabrics pucker under the same stitch load. Foam stitching is heavy. Thousands of tightly packed stitches pull on the fabric beneath them, and a flimsy surface distorts.

That's why the technique and the structured baseball cap grew up together. The front panel of a structured cap behaves almost like a board in the hoop, which is exactly what dense satin columns need. Madeira lists caps first among recommended applications for its 3D foam, followed by jackets, bags, and aprons, with the common thread being stable fabric.³ Heavier materials like denim and canvas also hold the raise well.⁵

Here's the quick rundown by garment:

• Structured caps and snapbacks: the gold standard. Front-center placement, bold letters, done. Our custom embroidered hats buyer's guide walks through cap styles and which take a raised logo best.
• Beanies: workable, and popular for winter merch, though knit stretch means simpler, smaller designs hold up best.
• Hoodies and heavy fleece: doable on the chest with thinner foam, since thick foam on soft fleece creates a rigid patch that fights the drape. If hoodies are the goal, start with our custom embroidered hoodies guide and plan a flat or hybrid design.
• Jackets, canvas bags, aprons: good candidates thanks to stable, heavy fabric.³
• T-shirts and thin knits: skip the foam. Lightweight jersey can't support the stitch density. A flat left-chest stitch on a heavier blank like the garment-dyed tees in our Comfort Colors guide gets you the premium thread look without the foam.

Design guidelines: what makes a logo foam-ready

A foam-ready logo uses bold, simple shapes with letter strokes between roughly 0.15 and 0.5 inches wide, rounded forms rather than sharp hairline serifs, and no fine detail inside the raised elements. The foam itself sets these limits. A stroke that's too narrow can't trap the foam under the stitches, and a stroke that's too wide leaves long satin stitches that snag and won't hold their loft.

Whitefish Printing pegs the workable text range at a minimum thickness of 0.15 inches and a maximum of 0.5 inches.⁴ Wilcom's digitizers frame the same rule in stitch terms: satin columns from 3mm minimum to 12mm maximum, with anything around 2mm risking foam compression that kills the raise.¹ Hatch's digitizing guidance caps satin objects at about 7mm wide for clean coverage.²

In practice, that means:

• Block and rounded fonts work. Thick sans-serif and athletic block lettering are the natural fit. Script, hairline serifs, and condensed thin fonts don't survive the foam.
• Keep it big. A raised cap logo usually fills a good portion of the front panel. Shrinking a foam design rarely works because the strokes fall below minimum width.
• One or two raised elements. Foam works best as the hero. Raise the initials or the wordmark, then stitch everything else flat.
• Avoid gradients and tiny negative space. Thread wrapped over foam reads as one solid color per element. Counters and gaps inside letters need to be wide enough to tear the foam out cleanly.
• Expect a redraw, not a rejection. If your current logo is too detailed, a digitizer can usually build a simplified, bolder version of the mark for the raised application while your full logo stays flat elsewhere.

If you send us a logo that won't hold foam, we'll tell you before anything stitches and propose the hybrid layout that will. That conversation costs nothing and saves an entire round of samples.

Durability and care: how raised logos hold up

A properly stitched raised logo lasts about as long as the garment itself, because the foam is sealed inside dense polyester thread, but high dryer heat is its one real enemy. The foam never touches the world directly. Thread takes all the abrasion, and embroidery-grade polyester thread is chosen for foam work precisely because it's stronger than rayon.¹

Care is simple and mostly matches what you'd do for any embroidered piece:

• Wash gently. Hand wash or a delicate machine cycle, skip harsh detergents.⁵ For caps, a quick hand wash beats the machine entirely.
• Air dry. Machine drying can flatten the foam over repeated cycles, so hang or lay flat instead.⁵
• Never iron the raised area directly. If you must press near it, cover the design with a cloth and keep the heat low.⁵
• Store without crushing. Don't stack heavy items on top of a raised cap front for weeks at a time.

For a uniform program, this matters less than it sounds. Caps rarely see the dryer anyway, and jackets get washed far less often than shirts. The pieces most likely to suffer heat damage, daily-wash tees and polos, are the same pieces where we'd steer you to flat stitching in the first place.

Cost factors: what drives the price of a raised logo

Raised stitching costs more than flat embroidery because of four inputs: a foam-specific digitizing file, the foam itself, roughly double the stitch count, and machines running slower with extra cleanup labor at the end. None of these is huge on its own. Together they explain the typical per-piece upcharge.

The takeaway for a buyer: the raised look is an upgrade priced in single dollars per piece, not a doubling of your order. On a cap your team will wear for two or three years, it's one of the cheapest perceived-quality upgrades in custom apparel. For the full picture of stitch counts, garment pricing, and where embroidery beats print, see our complete embroidery pricing breakdown.

Common mistakes that ruin a raised logo

Most failed foam jobs trace back to one of four mistakes: a logo with strokes too thin to hold foam, the wrong garment, a flat-stitch file reused for foam, or skipped capping that lets foam peek out of letter ends. Every one of them is avoidable before production starts.

The thin-stroke problem is the most common. A buyer sends the standard logo file, the shop quotes it without review, and the sample comes back with letters that look deflated because the satin columns compressed the foam instead of wrapping it. The fix is a quick redraw to fatten the strokes, which any competent digitizer flags up front. The second mistake is fabric choice, usually foam on a floppy unstructured cap or a thin tee, where the panel wrinkles around the design. Third is the recycled file: a stitch file digitized for flat embroidery has underlay and loose density, both of which crush foam.¹ And fourth is missing or sloppy capping stitches, which leave raw foam visible at stroke ends and let it work loose in the wash.²

You don't need to police any of this yourself. You just need a sample before the full run. One stitched cap in hand answers every question a mockup can't, and with no minimums there's no penalty for ordering exactly one.

Why we stitch raised logos in-house at Arklavo

I started this business on Etsy in 2023, stitching custom pieces one order at a time, and rebranded to Arklavo in 2025 once the work shifted almost entirely to businesses. Embroidery was the first decoration method we ran in-house and it's still the one I care most about, because it's the one customers touch. A printed logo is looked at. A stitched logo gets run under a thumb in the first ten seconds of unboxing, every single time.

Raised logos are where that effect is strongest. When a contractor or a gym owner picks up a cap with their mark standing off the front panel, the reaction is different from any flat sample we send. It reads like the hats they'd buy at retail, because it's built the same way. My job on these orders is mostly honesty in the first conversation: telling you which parts of your logo will hold foam, which parts should stitch flat, and pushing you toward the structured cap that will actually carry the design. We'd rather redraw a wordmark for free than ship a soft, mushy raise that embarrasses your brand.

How to order puff embroidery for your business

To order a raised logo from Arklavo, send your logo file and the garments you have in mind, approve the digital proof and a single stitched sample, then place the full run with no minimum order. We handle the digitizing, the foam-readiness review, and the redraw if your mark needs bolder strokes for the raised elements.

Here's the workflow:

1. Send the logo and the goal. Tell us the garment, cap, hoodie, or jacket, and roughly how many people you're outfitting. Request a quote with your file attached and we'll come back with pricing and a foam-readiness read on the design.
2. Approve the proof. You'll see which elements we recommend raising and which stitch flat, before anything goes to the machine.
3. Order one sample. No minimums means the sample is just a one-piece order. Check the loft, the edges, and the fit on a real head or body.
4. Place the run. Most orders ship in about 2 days, shipping is free over $150, and new customers can take 15 percent off a first order with code FIRST15.

If the order includes shirts or hoodies alongside the caps, size them properly before you commit. Our Gildan size chart covers the most common blank, and the t-shirt size chart guide compares every brand we run. You can also browse blanks and colors directly in the custom apparel collection and send us the exact pieces you want quoted.

Puff embroidery FAQ

Sources

1. Wilcom, Q&A from 3D Puff Embroidery Webinar (foam thickness, density, column widths, machine speed): wilcom.com
2. Hatch Embroidery, How to Digitize for 3D Puffy Foam Machine Embroidery (spacing, tack-down, capping, cleanup): hatchembroidery.com
3. Madeira USA, E-Zee 3D Embroidery Foam Topping (3mm foam, recommended applications): madeirausa.com
4. Whitefish Printing & Apparel, What Is Puff Embroidery and When Does It Work Best (raise height, stroke widths, upcharge): whitefishprinting.com
5. ZDigitizing, 3D Puffy Foam Embroidery Complete Guide (fabric suitability, washing and care): zdigitizing.com
6. Hooping Station, The Real Cost to Embroider One 3D Puff Hat (foam sheet pricing, setup fees): hoopingstation.com
